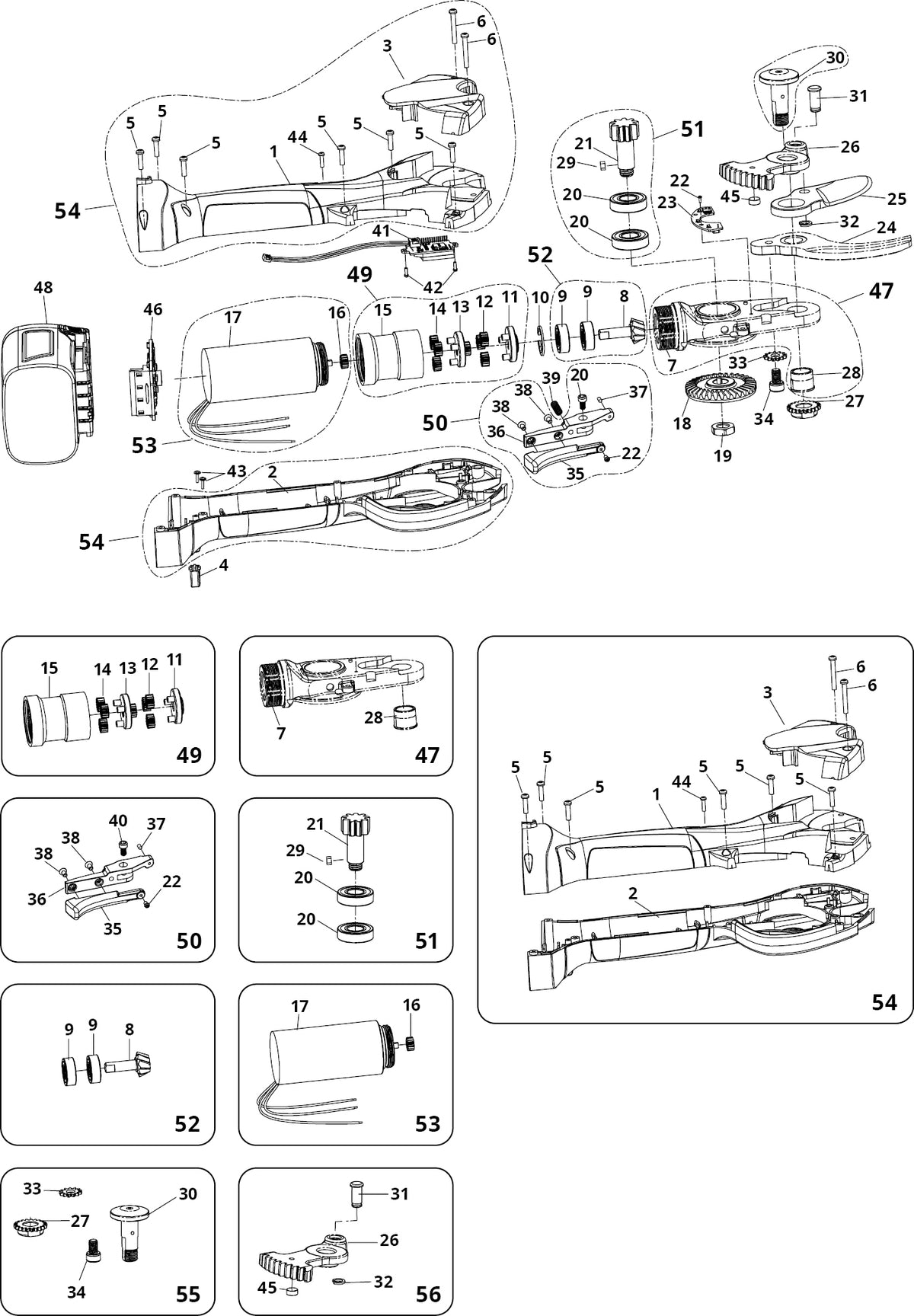

24V 37mm Secateur
0 selected
1
Right Cover
$50.00
2
Left Cover
$50.00
3
Head Cover
$15.00
4
Power Button
$9.00
5
M2.3 x 10 mm Round Head Self Tapping Screw (x 6)
$3.00
6
M3 x 19mm Cup Head Hex Screw (x 2)
$2.00
7
Gearcase Mainbody Assembly
$45.00
8
Small Bevel Gear
$15.00
9
607-Z Deep Groove Ball Bearing (x2)
$11.00
10
Circlip
$8.00
11
Output Planetary Gear Carrier
$20.00
12
Planetary Gear 1 (x3)
$20.00
13
Gear Carrier + Sun Gear
$22.00
14
Planetary Gear 2 (x3)
$20.00
15
Inner Ring Gear
$25.00
16
Motor Gear
$10.00
17
Motor
$165.00
18
Large Bevel Gear
$23.00
19
Axle Gear Nut
$10.00
20
6091 Full Ball Bearing (x2)
$11.00
21
Axle Gear
$15.00
22
M2 x 4mm Machine Screw
$1.00
23
Progressive Cutting Hall PCB
$56.00
24
Anvil
$70.00
25
Top Blade
$60.00
26
Pendular Gear
$43.00
27
Gear Nut
$10.00
28
Blade Splined Shaft Axle Sleeve
$10.00
29
Flat Key
$1.50
30
Splined Shaft
$15.00
31
Blade Pin
$2.50
32
Blade Pin Circlip
$1.00
33
Gear Washer
$6.50
34
M5 x 14mm Cup Head Hex Socket Screw
$2.00
35
Trigger Aluminum Part
$10.00
36
Trigger Plastic Part
$7.00
37
D2 x 3mm Magnet
$5.00
38
M2.5 x 5mm Flat Head Machine Screw
$1.00
39
Trigger Spring
$5.00
40
M3 x 6mm Hex Machine Screw
$1.00
41
LCD Module
$141.00
42
M2 x 6mm Round Head Self Tapping Screw (x 2)
$1.00
43
M1.7 x 6mm Self Tapping Screw (x 2)
$1.00
44
M2 x 10mm Round Head Screw
$1.00
45
D5 x 2mm Magnet
$5.00
46
Control Main Board Assembly
$166.00
47
Gearcase Main Body Assembly
$51.00
48
24V Lithium Ion Battery
$167.00
49
Inner Ring Gear Assembly
$80.00
50
Trigger Assembly
$15.00
51
Drive Gear Assembly
$25.00
52
Small Bevel Gear Assembly
$25.00
53
Motor Assembly
$170.00
54
Cover Shell Assembly
$100.00
55
Splined Shaft Kit
$33.00
56
37mm Pendular Gear Assembly
$43.00
