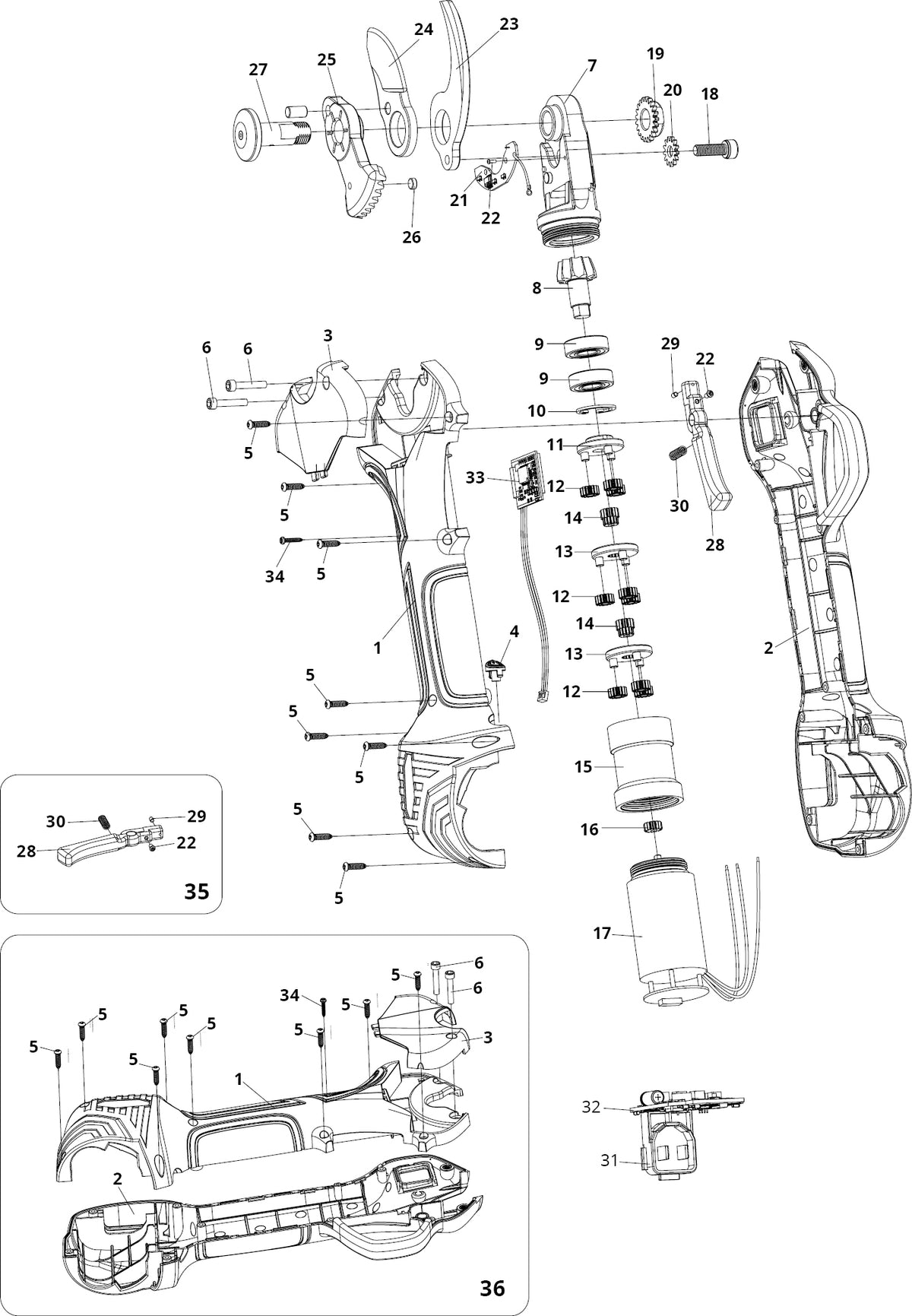

12V 23mm Secateur
0 selected
1
Left cover
$20.00
2
Right cover
$20.00
3
Head cover
$13.00
4
Power ON/OFF button
$5.00
5
ST2.6 x 10 screw (x 8)
$4.00
6
M3 x 16 screw (x 2)
$2.00
7
Chassis
$40.00
8
Small bevel gear
$20.00
9
619/9 full ball bearing (x 2)
$11.00
10
Circlip
$2.00
11
Output bevel gear
$20.00
12
Planetary gear (x 3)
$20.00
13
Gear carrier
$20.00
14
Center gear
$12.00
15
Internal ring gear
$20.00
16
Motor gear
$10.00
17
Motor
$112.00
18
M5 x 12 screw
$2.00
19
Gear nut
$10.00
20
Gear washer
$6.50
21
Hall PCB
$45.00
22
M2 x 5 screw
$1.00
23
Anvil
$39.00
24
Top Blade
$39.00
25
Pendular gear assembly
$35.00
26
5 x 2 magnet
$5.00
27
Splined shaft
$15.00
28
Metal Trigger
$10.00
29
2 x 3 magnet
$5.00
30
Trigger spring
$5.00
31
12V battery connector
$8.00
32
Main PCB
$120.00
33
LCD module display
$69.00
34
ST2 x 10 screw
$1.00
35
Trigger assembly
$25.00
36
Cover assembly
$53.00
