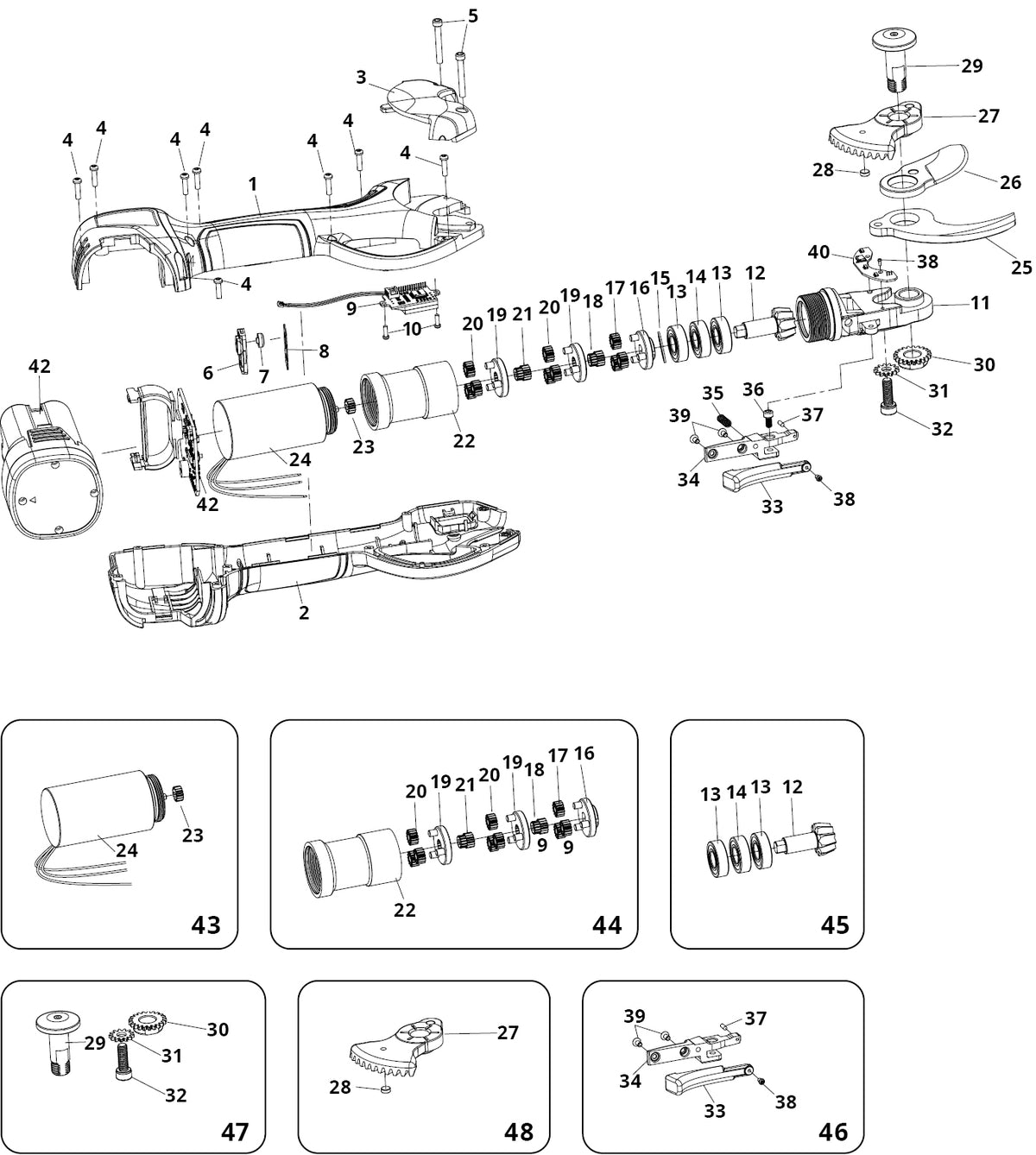

16.8V 25mm Secateur
0 selected
1
Right handle half (Cover)
$41.00
2
Left handle half (Support)
$41.00
3
Head cover
$15.00
4
M2.6 x 10mm round head self tapping screw (x8)
$4.00
5
M3 x 20mm hex screw (x 2)
$2.00
6
Switch Guard
$8.00
7
Switch button
$0.00
8
PVC button sticker
$0.00
9
LCD Module
$141.00
10
M2 x 6mm round head self tapping screw (x 2)
$2.00
11
Gear case main body assembly
$40.00
12
Small bevel gear
$15.00
13
619/9 full ball bearing (x 2)
$11.00
14
619/9 deep-groove bearing
$5.50
15
D20 circlip
$8.00
16
Output planetary gear carrier
$20.00
17
Planetary gear 1 (x3)
$20.00
18
Sun gear 1
$12.00
19
Planetary gear carrier
$15.00
20
Planetary gear 2 (x 3)
$20.00
21
Sun gear 2
$12.00
22
Internal ring gear
$25.00
23
Motor gear
$10.00
24
Motor
$145.00
25
Anvil
$65.00
26
Top Blade
$60.00
27
Pendular gear
$35.00
28
D5 x 2mm magnet
$5.00
29
Splined shaft
$15.00
30
Gear nut
$10.00
31
Gear washer
$6.50
32
M5 x 12mm hex screw
$2.00
33
Trigger aluminum part
$10.00
34
Trigger plastic part
$7.00
35
Trigger spring
$5.00
36
M3 x 6mm hex screw
$0.50
37
D2 x 3mm magnet
$5.00
38
M2 x 4mm machine screw
$0.50
39
M2.5 x 5mm machine screw (x2)
$1.00
40
Progressive cutting hall PCB
$56.00
41
PCB board
$150.00
42
Battery
$130.00
43
Motor assembly
$150.00
44
Inner ring gear assembly
$120.00
45
Small bevel gear assembly
$30.00
46
Trigger assembly
$15.00
47
Splined Shaft Kit
$33.00
48
Pendular Gear Assembly
$35.00
